Angle
Vinex Metal Industries is a reputed Manufacturer and Exporter of precision-engineered Angles, offering robust structural solutions tailored for demanding industrial and architectural applications. Headquartered in Mumbai, India, we specialize in producing high-strength angle profiles that ensure superior load distribution and durability.
Our range of Angle Profiles is available in multiple sizes, thicknesses, and specifications, manufactured in accordance with ASTM, ASME, and API standards. Whether you need equal angles or unequal angles, Vinex delivers quality profiles that meet the highest performance benchmarks for strength and reliability.
We use only premium raw materials such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, and other specialty alloys to ensure each angle offers excellent mechanical strength, dimensional accuracy, and corrosion resistance. Every angle is subjected to thorough quality inspections and non-destructive testing (NDT) to ensure compliance with global quality standards.
Widely utilized in sectors such as Construction, Infrastructure, Oil & Gas, Power Plants, Petrochemical, Marine, Shipbuilding, and Heavy Engineering, our angles are ideal for framing, bracing, support structures, and fabrication applications in high-load and harsh environments.
At Vinex Metal Industries, we provide customized angle solutions with flexibility in lengths, leg sizes, thicknesses, and surface finishes (Hot Rolled, Pickled, Sandblasted, Polished). With a commitment to engineering excellence, timely delivery, and customer satisfaction, our angle profiles are trusted globally for superior performance and quality.
Available Grades of Angles
| Material | Standard | Available Grades | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| Stainless Steel | ASTM A276 / A479 | 304 | 304L | 304H | 309 | 310 | 310S | 316 | 316L | 316Ti | 317L |
| 321 | 321H | 347 | 347H | 410 | 420 | 430 | 446 | 904L | |||
| Duplex / Super Duplex | ASTM A276 / A479 | Duplex S31803 / S32205 | Super Duplex S32750 / S32760 | ||||||||
| Nickel Alloys | ASTM B160 / B164 | Nickel 200 | Nickel 201 | Inconel 600 | Inconel 625 | Inconel 718 | Incoloy 800 | Incoloy 825 | Monel 400 | Monel K500 | |
| Alloy Steel | ASTM A182 / A336 | F1 | F5 | F9 | F11 | F12 | F22 | F91 | F92 | ||
| Titanium | ASTM B348 | Gr 1 | Gr 2 | Gr 5 | Gr 9 | ||||||
| Carbon Steel | ASTM A36 / A105 | Mild Steel | High Tensile | S355J2+N | ST 52 | EN 353 | |||||
| Copper Nickel | ASTM B151 | CuNi 70/30 | CuNi 90/10 | ||||||||
| Other Alloys | - | Alloy 20 | Hastelloy | Brass | Beryllium Copper | Tantalum | SMO 254 | Aluminium | |||
Dimensional Standards of Angles
| Profile Type | Size Range | Thickness | Length |
|---|---|---|---|
| Angles | 15 MM – 300 MM | 1 MM – 63.5 MM | Custom Lengths Available |
| Channels | 15 MM – 300 MM | 1 MM – 63.5 MM | Custom Lengths Available |
| Beams | 15 MM – 300 MM | 1 MM – 63.5 MM | Custom Lengths Available |
Types

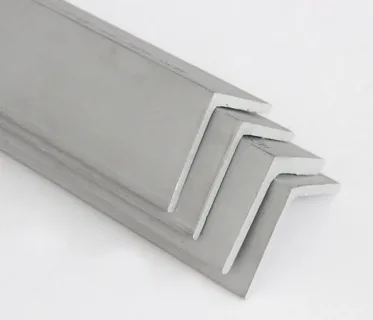

Angles
Angles are structural steel components with an L-shaped cross-section, designed for load-bearing applications in construction, engineering, and industrial frameworks. These profiles offer excellent strength, stability, and corrosion resistance, making them ideal for supporting structures, reinforcement, and fabrication projects. Available in various sizes, thicknesses, and material grades, Angles are used in bridges, buildings, towers, and heavy machinery.
Key Features
- Manufactured with a circular cross-section for uniform strength and durability.
- Available in a wide range of diameters from 6.35 MM to 406 MM (1/4” – 16”).
- Offered in various materials such as stainless steel, carbon steel, alloy steel, and specialty alloys.
- Lengths available from 1 meter to 6 meters, with custom-cut options as per project requirements.
- Complies with international standards like EN, DIN, JIS, ASTM, BS, ASME, and AISI.

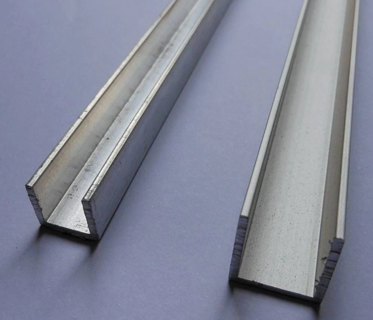

Channels
Channels are structural steel components with a C or U-shaped cross-section, widely used in construction, engineering, and industrial applications. These profiles provide exceptional strength, load-bearing capacity, and durability, making them ideal for frameworks, supports, and reinforcements in buildings, bridges, and heavy machinery. Available in various sizes, thicknesses, and material grades, Channels are an essential element in structural stability.
Key Features
- Manufactured with a square cross-section for enhanced stability and load-bearing capacity.
- Available in a range of sizes from 6.35 MM to 406 MM (1/4” – 16”).
- Offered in various materials, including stainless steel, carbon steel, alloy steel, and specialty alloys.
- Standard lengths range from 1 meter to 6 meters, with custom-cut options available.
- Manufactured according to international standards like EN, DIN, JIS, ASTM, BS, ASME, and AISI.

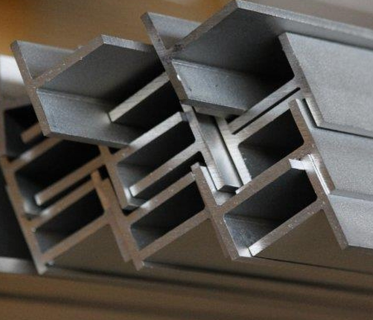

Beams
Beams are structural steel components designed to support heavy loads and resist bending forces. Commonly used in construction, infrastructure projects, and industrial applications, Beams provide superior strength, stability, and durability. Available in a variety of sizes, thicknesses, and material grades, these profiles play a crucial role in building frameworks, bridges, and heavy machinery.
Key Features
- Features a hexagonal cross-section for superior grip and machining precision.
- Available in a range of sizes from 6.35 MM to 406 MM (1/4” – 16”).
- Offered in various materials, including stainless steel, carbon steel, alloy steel, and specialty alloys.
- Standard lengths range from 1 meter to 6 meters, with custom-cut options available.
- Manufactured according to international standards like EN, DIN, JIS, ASTM, BS, ASME, and AISI.
Applications of Angles
Angles are crucial structural components used in a variety of load-bearing and reinforcement applications. Key industry applications include:
- Construction & Infrastructure: Widely used in building frames, support structures, bridges, and towers for reinforcement and stability.
- Automotive Industry: Applied in chassis frames, brackets, and reinforcement supports for heavy-duty vehicles and machinery.
- Shipbuilding & Marine: Used in the fabrication of hulls, decks, and internal ship structures for strength and corrosion resistance.
- Oil & Gas Industry: Utilized in offshore platforms, pipeline supports, and rig structures for stability under extreme conditions.
- Power Plants: Used in structural frameworks for boilers, turbines, and energy transmission systems.
- Industrial Machinery: Integral to machinery frames, supports, and heavy equipment structures.
- Storage Systems: Used in the fabrication of racks, shelving, and storage frames in warehouses and logistics facilities.
- Railways & Transportation: Applied in the construction of freight wagons, railway platforms, and infrastructure support systems.
