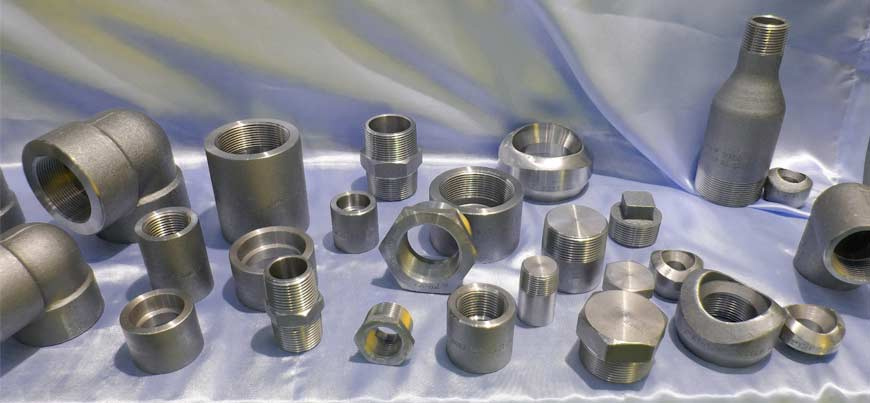

Forged Fitting
Vinex Metal Industries is a leading Manufacturer and Exporter of high-quality Forged Fittings, located in Mumbai, India. We specialize in producing precision-forged pipe fittings using premium-grade raw materials, carefully inspected by our skilled professionals to ensure exceptional strength, integrity, and performance.
Each of our Forged Fittings is manufactured in strict compliance with National and International Standards, ensuring our clients receive durable, high-performing components for a wide range of industrial applications. Our commitment to quality and reliability has made us a trusted partner to industries worldwide.
Vinex Metal Industries offers a comprehensive range of forged fittings, crafted using the finest raw materials. These fittings are subjected to stringent quality checks and performance tests to ensure they meet the rigorous demands of high-pressure and high-temperature systems.
Our forged fittings are available in a variety of types, sizes, and grades, including Stainless Steel, Carbon Steel, Duplex Steel, Super Duplex Steel, Alloy Steel, Nickel Alloy, Titanium Alloy, and Copper Nickel Alloy. Known for their corrosion resistance, dimensional precision, and long-lasting durability, these fittings are ideal for critical industrial operations.
Supported by a team of experienced professionals and equipped with state-of-the-art manufacturing facilities, Vinex Metal Industries is dedicated to delivering world-class forged fittings that meet the highest standards of engineering excellence and customer satisfaction in global markets.
Available Grades of Forged Fitting
| Material | Standard | Available Grades | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| Stainless Steel | ASTM A403 WP | 304 | 304H | 309 | 310 | 316 | 316L | 317L | 321 | 347 | 904L |
| ASTM A815 / ASME SA 815 | Duplex 2205 - UNS S31803, S32205 | Duplex 2304 - UNS S32304 | Duplex 2507 | ||||||||
| Alloy Steel | ASTM / ASME A/SA 234 | WP 1 | WP 11 | WP 12 | WP 22 | WP 91 | WP 5 | WP 9 | |||
| Alloy | 1100 | 2011 | 2014 | 2024 | 3003 | 5052 | 6061 | 6063 | 7075 | ||
| Carbon Steel | ASTM A 234 | WPB | WPBW | WPHY 42 | WPHY 46 | WPHY 52 | WPHY 60 | WPHY 65 | WPHY 70 | ||
| ASTM / ASME SB 336 | Inconel 600 | MONEL 400 | ALLOY 20 | Inconel 825 | Inconel 601 | Inconel 625 | Nickel 200 | Hastelloy C 276 | Nickel 201 | ||
Dimensional Standards of Forged Fitting
Types of Forged Fitting

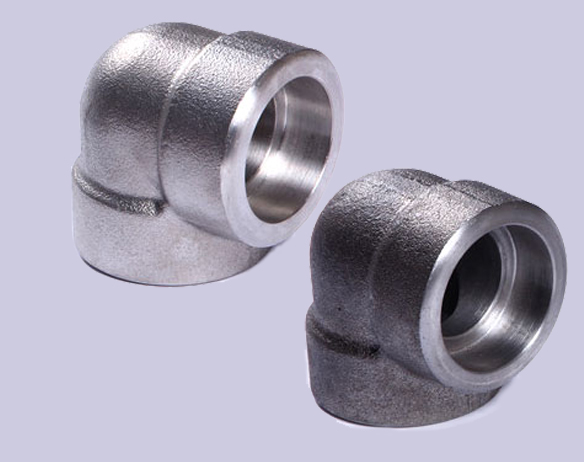

Elbow
A Forged Elbow is a high-pressure fitting used to change the direction of flow in piping systems. Available in 90-degree and 45-degree angles, these elbows are manufactured in socket weld and threaded end connections, ensuring leak-free operation under extreme pressure and temperature conditions. They are widely used in oil & gas, chemical processing, and power generation industries for compact, durable, and corrosion-resistant piping systems.
Key Features
- Available in 90° and 45° angles for direction change in piping layouts.
- Designed in Socket Weld and Threaded end types.
- Manufactured in pressure classes 2000#, 3000#, 6000#.
- Made from Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, and more.
- Ideal for high-pressure and corrosive applications.

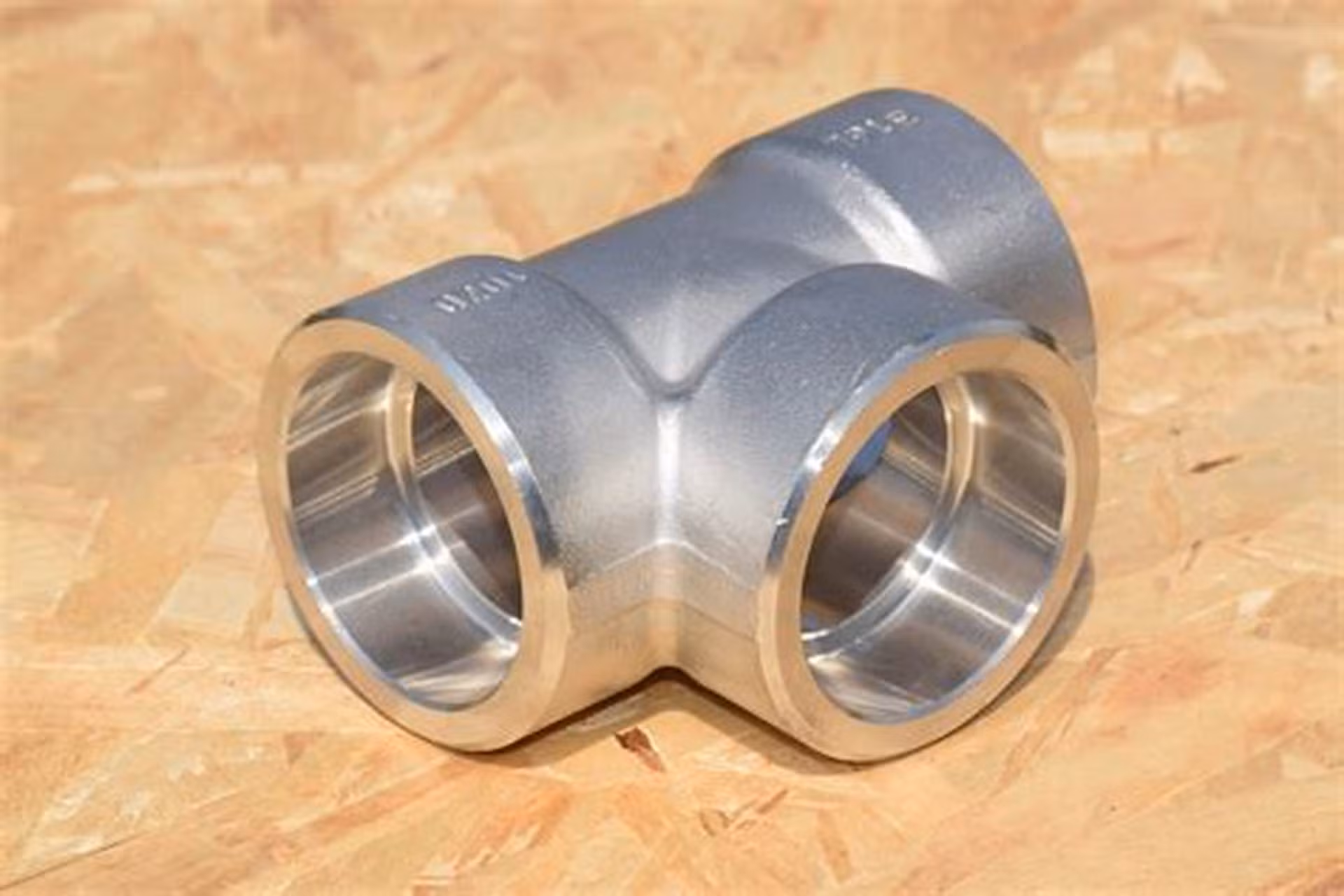

Tee
A Forged Tee is a type of high-pressure pipe fitting used to combine or divide fluid flow. Available in both Equal Tee and Reducing Tee types, it is designed for socket weld and threaded end connections. Forged tees are used in a variety of applications where compact piping and high strength are required—especially in oil & gas, petrochemical, and power generation industries.
Key Features
- Available in Equal Tee and Reducing Tee configurations.
- Socket weld and threaded end types for leak-proof installations.
- Suitable for pressure ratings: 2000#, 3000#, 6000#.
- Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, and Special Alloys.
- Ideal for distributing or collecting fluid flow in various pipeline systems.

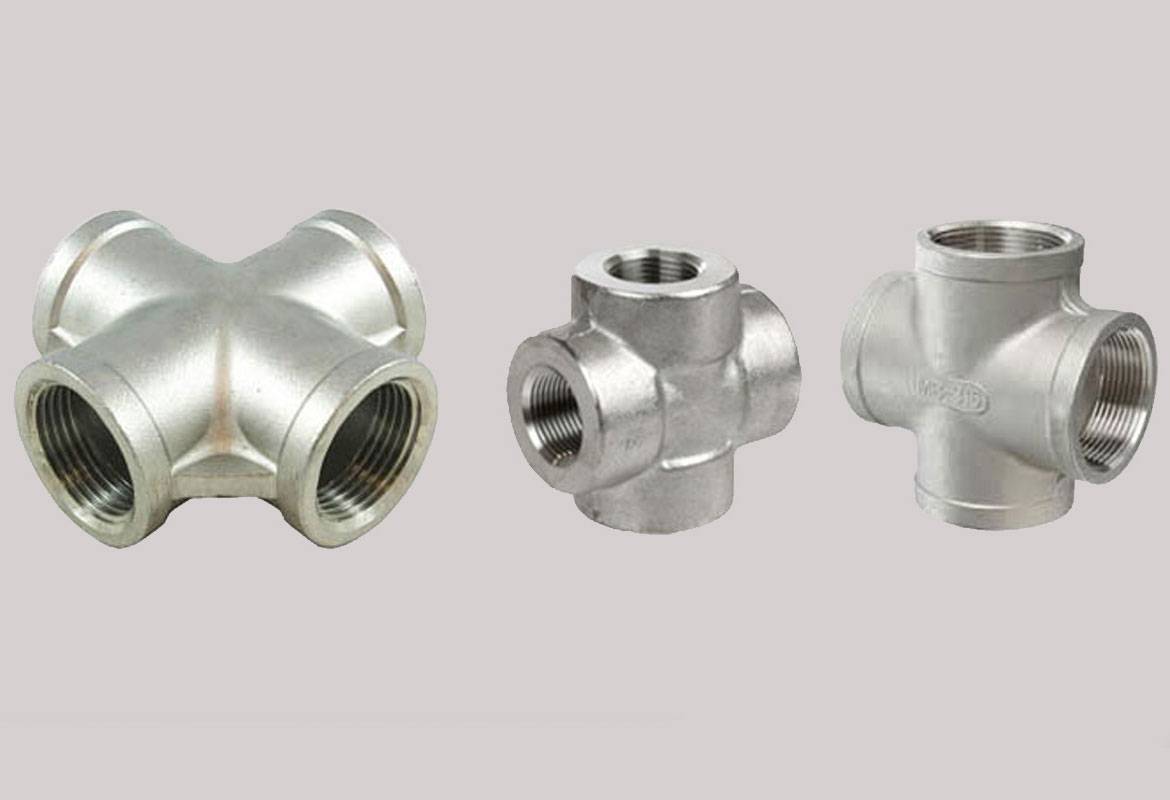

Cross
A Forged Cross is a four-way pipe fitting used to divide or combine flow in a piping system. It has one inlet and three outlets (or vice versa), all positioned at 90-degree angles. Available in both Equal Cross and Reducing Cross configurations, forged crosses are widely used in high-pressure and high-temperature applications. They are typically socket weld or threaded and are vital for process piping in refineries, petrochemical plants, and power stations.
Key Features
- Available in Equal and Reducing configurations for various piping needs.
- Socket weld and threaded ends for secure, high-pressure connections.
- Common pressure ratings: 2000#, 3000#, 6000#.
- Made from durable materials like Stainless Steel, Carbon Steel, and High-Alloy Steels.
- Used in critical flow distribution or collection systems in industrial plants.

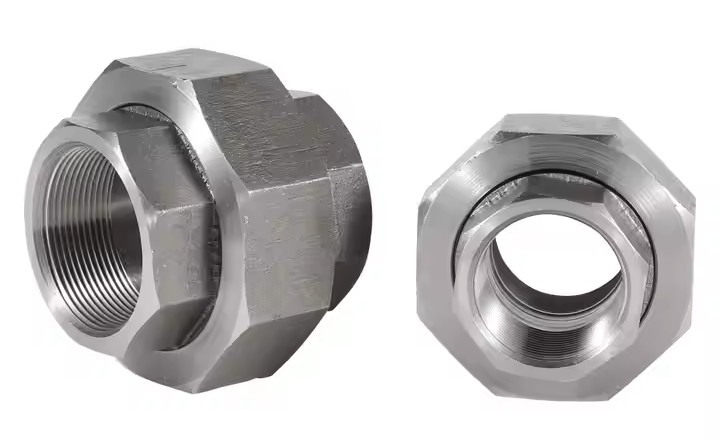

Union
A Forged Union is a type of forged pipe fitting used to join two pipes while allowing easy future disconnection without cutting the pipe. It consists of three parts — a male end, a female end, and a nut — which securely compress and seal the connection. Unions are available in Socket Weld and Threaded forms and are widely used in applications requiring quick installation and removal, such as instrumentation, gas lines, and process piping.
Key Features
- Allows disconnection and re-connection without disturbing the piping system.
- Available in threaded (NPT/BSP) and socket weld ends for various connection types.
- Common pressure classes: 2000#, 3000#, and 6000#.
- Precision machined to ensure leak-proof sealing under pressure.
- Widely used in oil & gas, chemical, and power industries.

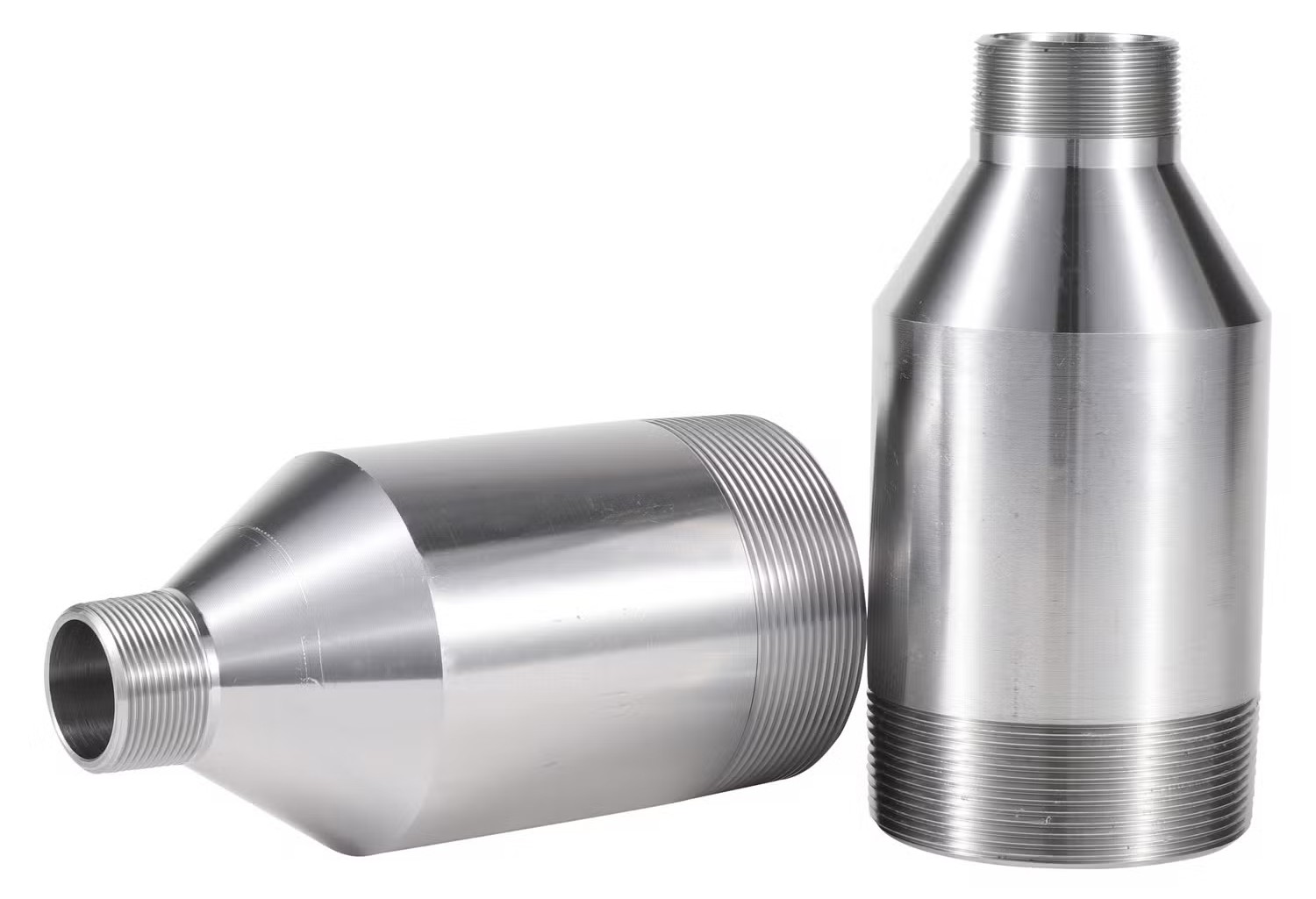

Nipple
A Swage Nipple is a type of forged fitting used to connect pipes of different diameters. It comes in two configurations: Concentric (aligned centerlines) and Eccentric (offset centerlines), allowing smooth transitions between different pipe sizes. Swage nipples are available with Plain Ends (PE), Beveled Ends (BE), or Threaded Ends (NPT/BSP), making them versatile for high-pressure and high-temperature piping systems.
Key Features
- Connects pipes of unequal diameters for a smooth transition.
- Available in Concentric and Eccentric types.
- End types: Beveled End, Plain End, or Threaded (NPT/BSP).
- Designed for high-pressure, high-temperature, and corrosive environments.
- Widely used in oil & gas, power, chemical, and industrial piping systems.

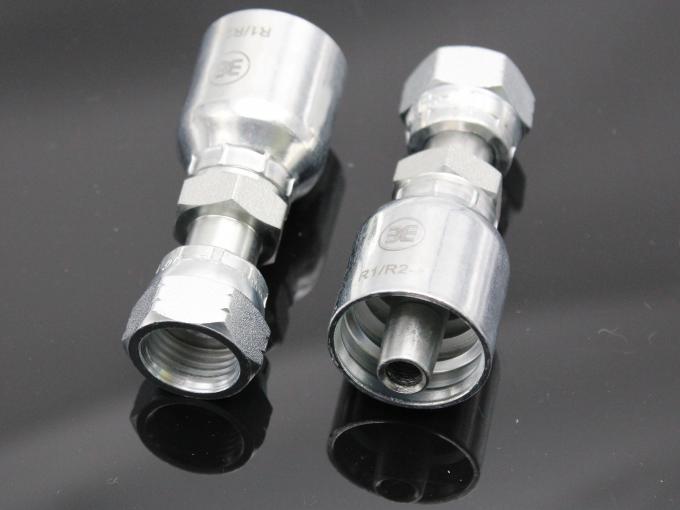

Adaptor
A Forged Adaptor is a fitting used to connect pipes of different types or sizes, often transitioning between threaded and socket weld connections or male-to-female thread forms. These fittings allow for easy disassembly and reconnection of pipelines during maintenance. Adaptors are commonly used in systems where versatility, ease of installation, and reusability are crucial, such as in oil & gas, petrochemical, and instrumentation piping networks.
Key Features
- Used for transitioning between different pipe end types or sizes.
- Available in Male × Female, Male × Male, or Threaded × Socket Weld configurations.
- Suitable for quick assembly/disassembly of piping systems.
- Precision-machined to ensure tight and leak-proof connections.
- Widely used in oil & gas, chemical, power, and instrumentation pipelines.

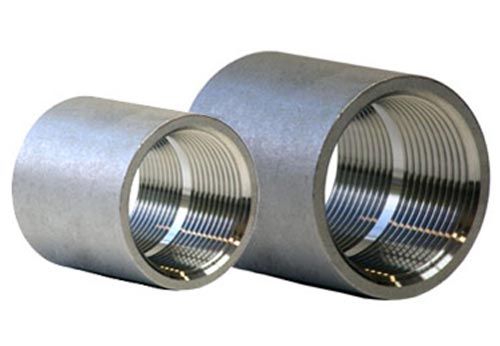

Coupling
A Forged Coupling is a short length of pipe used to connect two pipes or fittings in a straight line. Available in Full Coupling (connects two pipes) and Half Coupling (connects a pipe to a fitting or branch), these fittings are vital for assembling and disassembling piping systems. Couplings are manufactured in both Threaded and Socket Weld forms and are widely used in industries where high-pressure and leak-proof connections are required.
Key Features
- Available in Full and Half configurations for different connection needs.
- Designed for both Threaded and Socket Weld end types.
- Ensures leak-proof, high-strength connections in critical piping systems.
- Manufactured using materials like stainless steel, carbon steel, and alloy steel.
- Commonly used in oil & gas, chemical, power, and hydraulic applications.

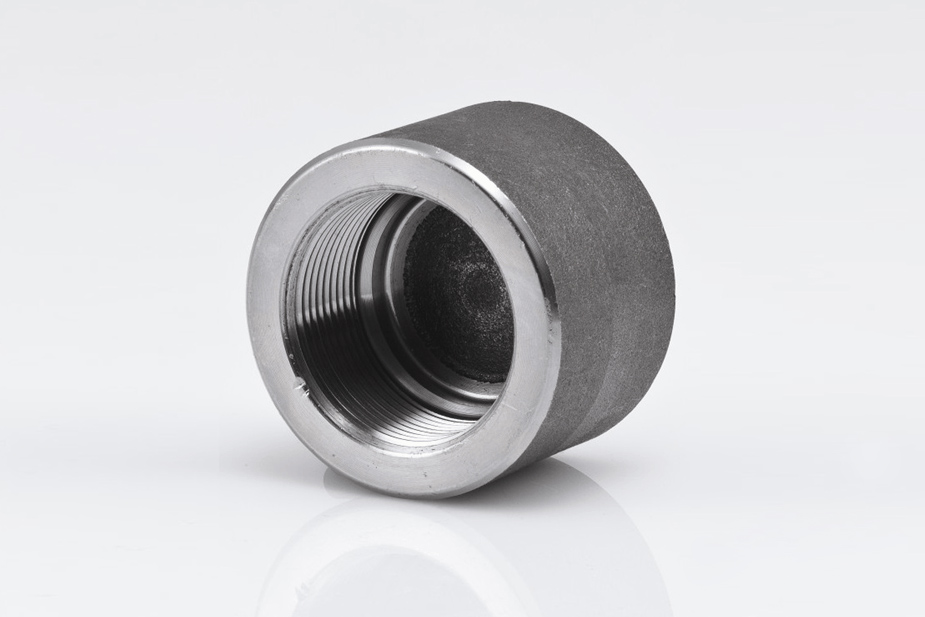

Pipe Cap
A Forged Pipe Cap is a type of forged fitting used to terminate the end of a pipe. It provides a secure closure to piping systems and prevents leakage, debris ingress, or damage to open pipe ends. These caps are typically installed using socket weld or threaded connections and are widely used in high-pressure, high-temperature applications across industries such as oil & gas, chemical, power generation, and petrochemical plants.
Key Features
- Used to permanently or temporarily seal the end of a pipe or fitting.
- Available in socket weld and threaded end connections.
- Suitable for high-pressure and high-temperature environments.
- Manufactured in stainless steel, carbon steel, alloy steel, and exotic materials.
- Commonly used in oil & gas, petrochemical, and industrial piping systems.
Applications of Forged Fitting
Forged pipe fittings are widely used in various industries due to their high strength, durability, and leak-proof connections. Some of the key applications include:
- Oil & Gas Industry: Used in pipelines for transporting crude oil, natural gas, and petroleum products.
- Petrochemical & Refineries: Essential for processing plants handling chemicals, fuels, and hydrocarbons.
- Power Plants: Applied in thermal, nuclear, and renewable energy sectors for steam and fluid transportation.
- Water Treatment Plants: Used in desalination and purification plants to ensure corrosion-resistant piping.
- Pharmaceutical Industry: Ensures hygienic and contamination-free fluid transportation.
- Food & Beverage Industry: Stainless steel buttweld fittings are preferred for their hygienic and corrosion-resistant properties.
- Shipbuilding & Marine: Used for seawater pipelines, ballast systems, and offshore drilling.
- Construction & Infrastructure: Essential for underground and overhead pipeline networks in cities.
